In the yellow section of the code, radiation sources may be added, deleted, or modified. A wave length of zero value generates a steady, non-pulsating source.
Touching a screen position will display the local intensity (0-1) in the button in the upper right of the screen.
Touching that button will stop the program.

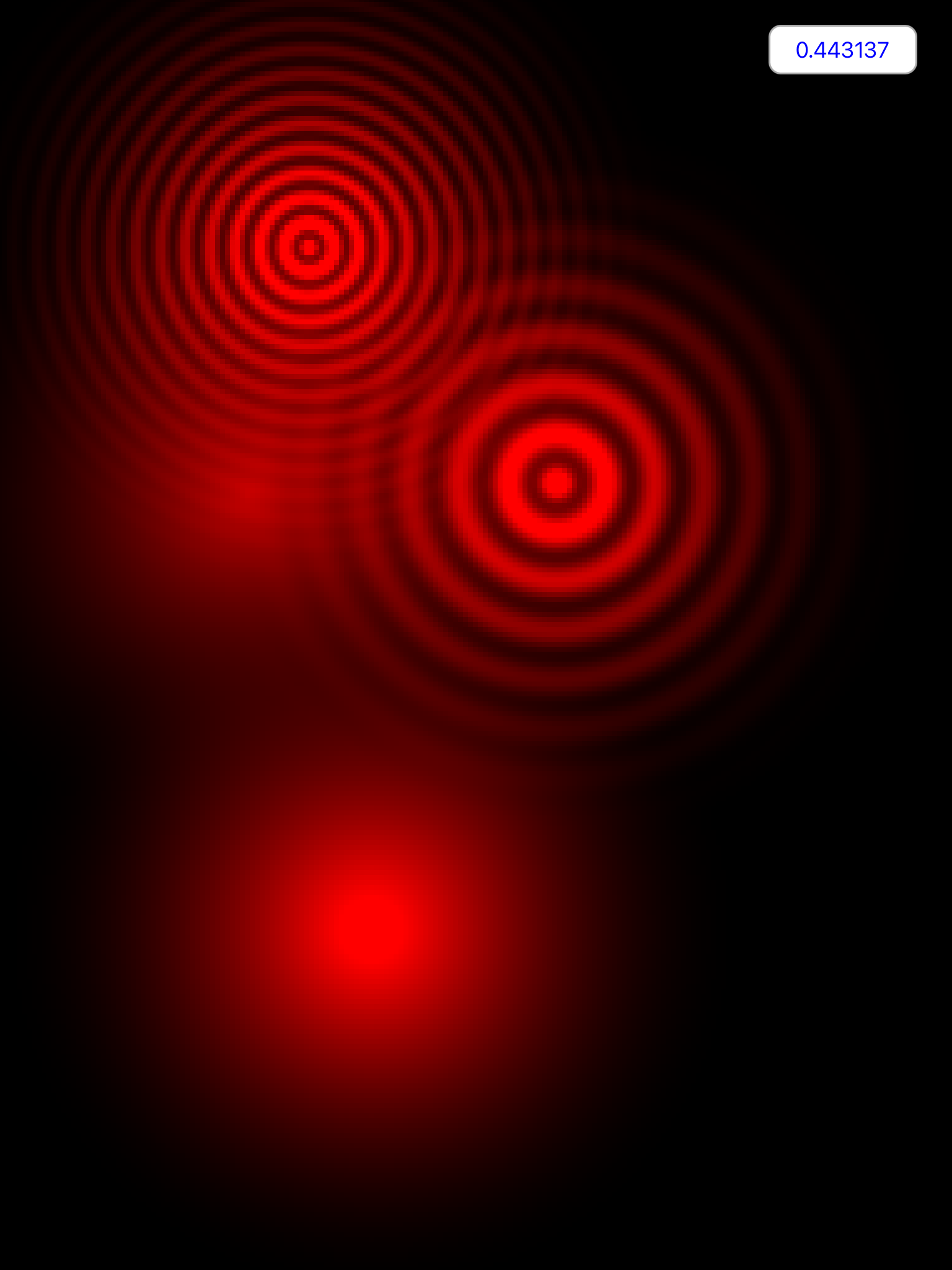

- IMG_1288.png (337.21 KiB) Viewed 863 times
Code: Select all
' *** Main program ***
init_prog()
n_sources=define_sources()
view(4) ' result with blocksize 4 pixels
do slowdown
get touch(0) as x,y
get pixel sc*x,sc*y color r,g,b,a
button "stop" text r ! pause .1
until button_pressed("stop")
end
def init_prog()
graphics ! graphics clear 0,0,0 ! fill color 1,0,0
set toolbar off ! option angle degrees
get screen size .sw,.sh ! .sc=screen_scale()
button "stop" text "" at 620,20 size 120,40
end def
def define_sources()
' for each source: screen location x,y, intensity, wave length
source_data:
'y'
data 250,200, 100, 20
data 450,390, 100, 40
data 300,750, 80, 0 ' non_pulsating sources
data 200,400, 50, 0
''
while data_exist() ! read x,x,x,x ! n+=1 ! end while
restore to source_data
dim .xx(n),.yy(n),.ampl(n), .freq(n)
for i=0 to n-1
read .xx(i),.yy(i),.ampl(i),.freq(i)
ampmax=max(ampmax,.ampl(i))
if .freq(i)>0 then .freq(i)=360/.freq(i)
next i
for i=0 to n-1 ! .ampl(i)/=ampmax ! next i
return n ' return # of sources
end def
def view(dw)
dw=max(dw,2) ! ds=dw/2
for x=0 to .sw step dw
for y=0 to .sh step dw
fill alpha intensity(x,y)
fill rect x-ds,y-ds to x+ds-1,y+ds-1
next y
next x
end def
def intensity(x,y)
calfa=1 ! m=300
for i=0 to .n_sources-1
dist=max(1,sqrt((.xx(i)-x)^2 + (.yy(i)-y)^2))
fac=dist/m ! if dist<m then fac=fac^2-2*fac+1 else fac=0
alf=fac*.ampl(i)*(1+cos(dist*.freq(i))/2)
calfa*=(1-alf)
next i
return 1-calfa
end def
